Upvc Window Cavity Closing Wedge
13mm
white
selling each
sold individually, need two for one window
Upvc Window Cavity Closing Wedge Draught Sealing
€2.50
In stock
Product description

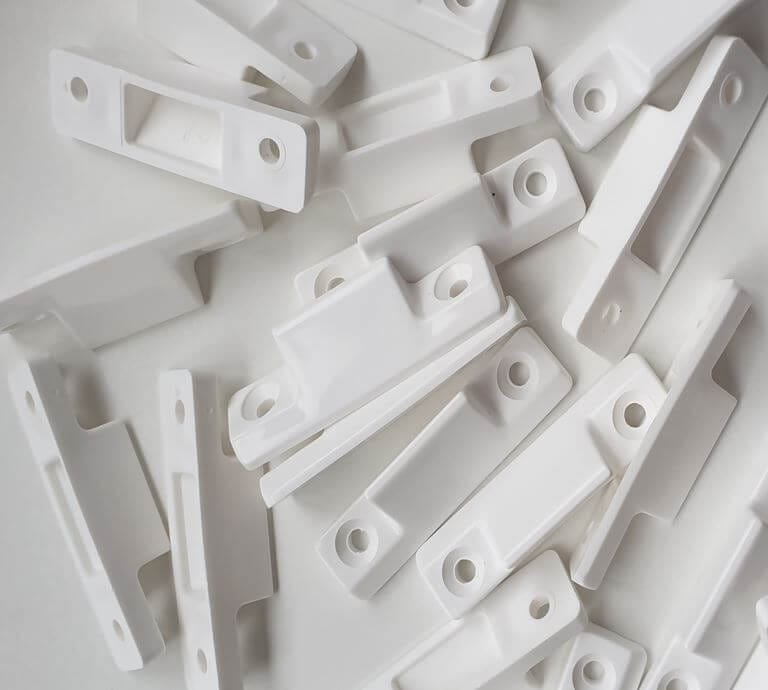

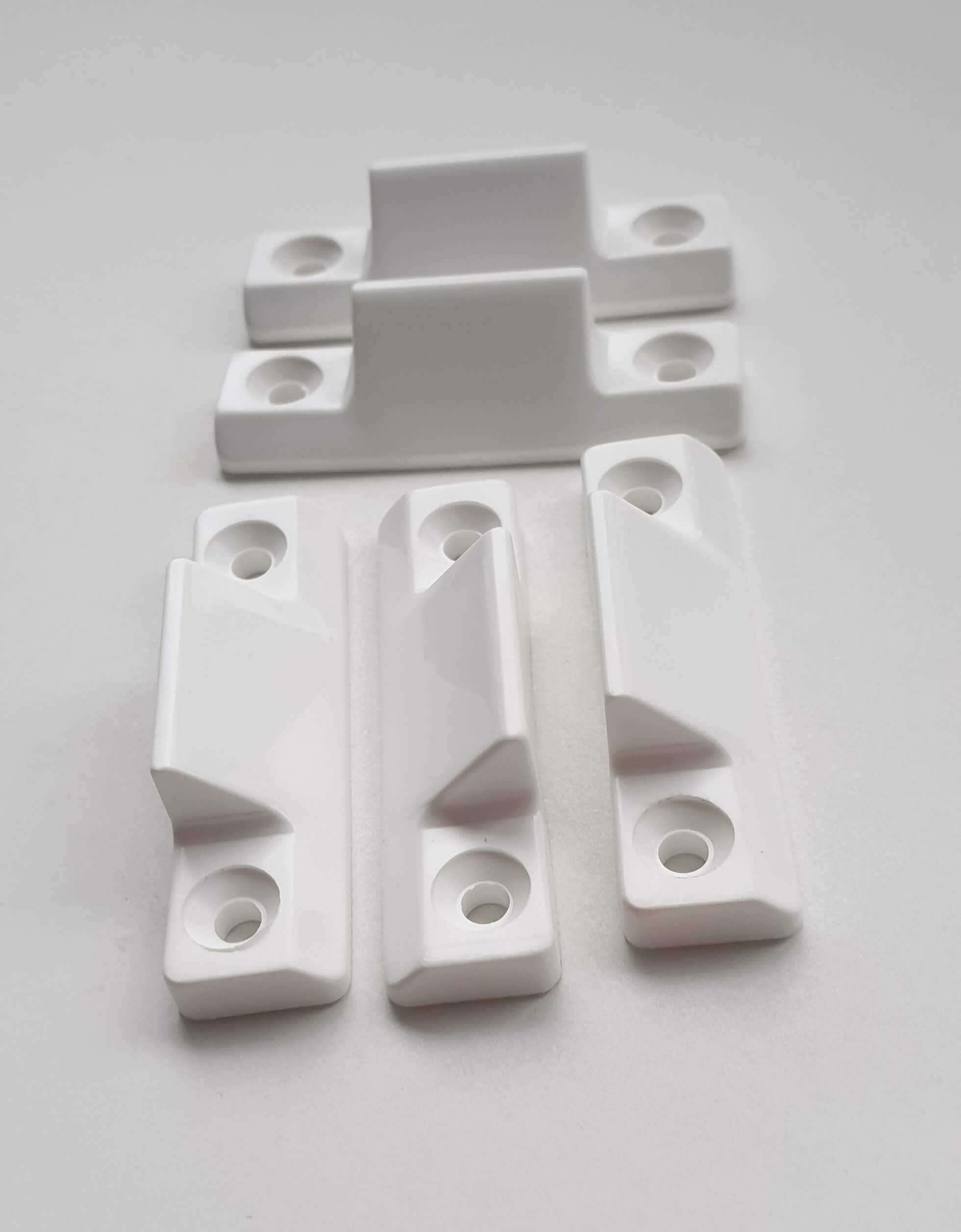

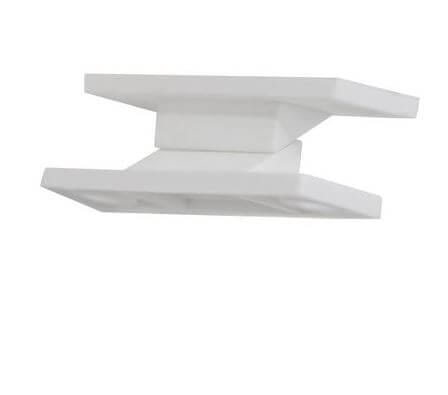

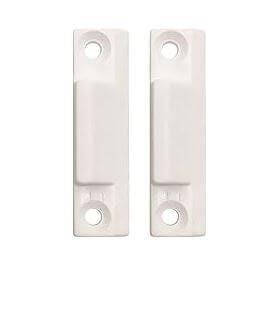

Upvc Window Cavity Closing Wedge Draught Sealing
This cavity closing wedges are purpose made to provide both the correct closing position of the hinge side of the push out casement window, and will also in some cases where the window opener is not closing tightly onto the weather sealing gasket also enable it to do so. The wedges are shaped so that as the 2 opposing parts close together they tighten both the vent sash to the upvc outer frame.
Dependent on the profiles fitted and how close the 2 parts come together within the cavity once closed there may be need to adjust / create a packing shim under to pull the 2 parts together.
Fitting tip:

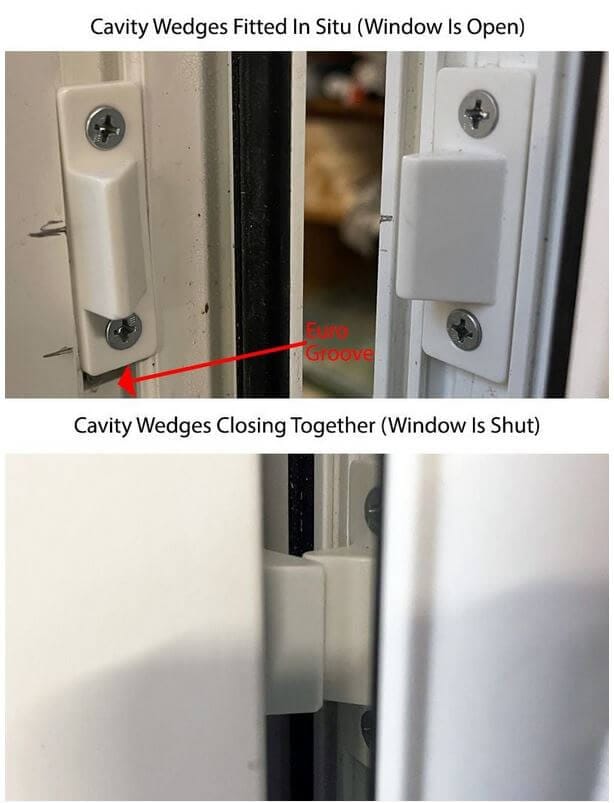

Fit the first half of the wedge onto the opening sash into the euro-groove slot then mark the centre of this onto the edge of the sash so that you can transfer this to the outer frame to align the fixing point for the opposing wedge. It is always worth checking that the 2 profiles are level and not bowed out of shape as this may cause the 2 parts to not locate correctly and actually increase the gap not close it.
Size:
Width: 12mm
Long: 50mm
Height:13mm
Screw centre: 40mm
Additional information
Weight | 0.05 kg |
---|
