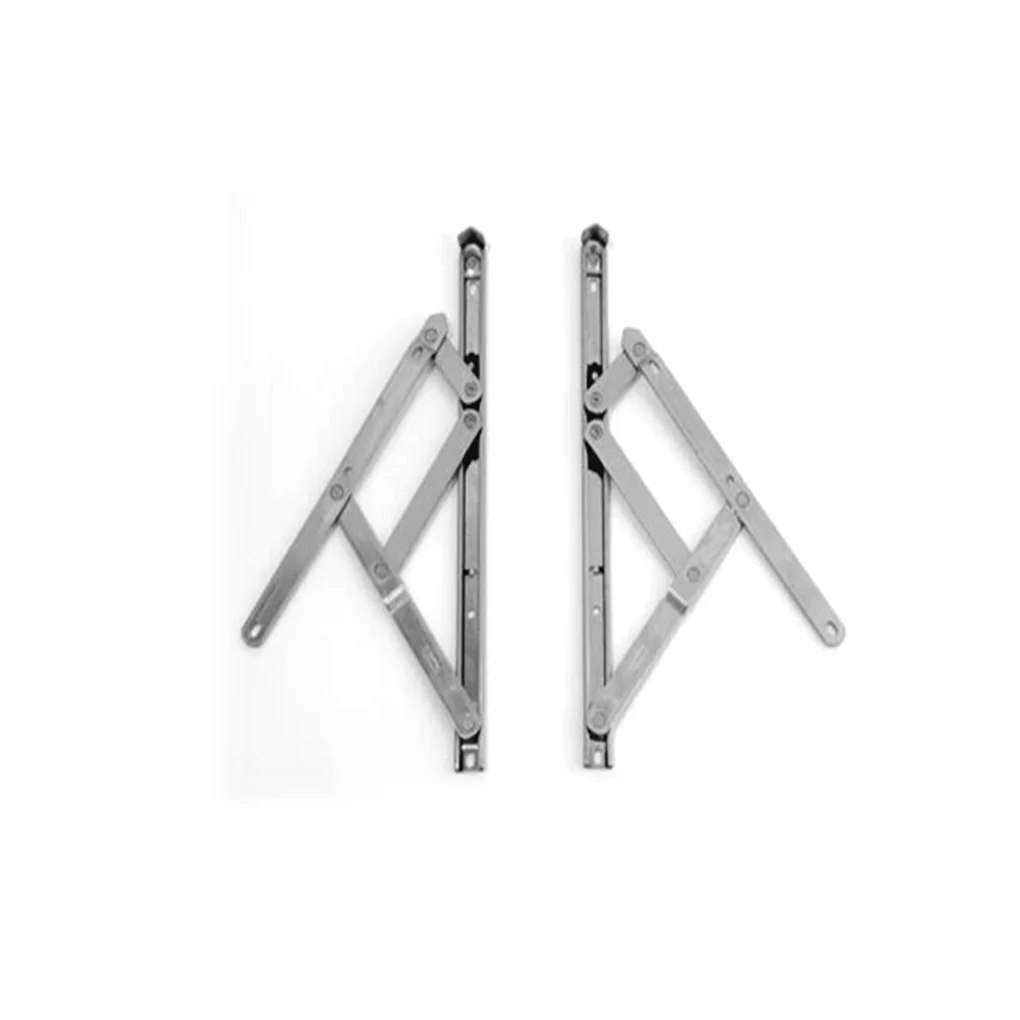

Nico – Side Hung Window Hinges 250mm (10″) –pair

Product description

Nico – Side Hung Window Hinges 250mm (10″) –pair

The Standard Friction Hinge is manufactured in stainless steel and offers excellent load bearing characteristics. The 13mm stack height hinge is a non symmetrical handed stay. Slotted fixing holes in the base channel and sash bar, with a final fixing hole in each component, provide maximum sash/frame adjustment. The all metal end-cap is riveted on to the hinge for extra strength and rivet holes are counterbored in a 3 stage manufacturing process. This means parts are manufactured to tight tolerances and ensures reliable operation of the finished hinges. The friction slide is made from high strength glass reinforced nylon with an adjustable resistance screw to regulate friction.

• • Range of top and side hung hinges in sizes from 200mm up to 400mm manufactured in ferritic stainless steel. 13mm stack heights to suit most profiles

Can be increase to 17mm with hinges packers here :https://fix46.ie/product/upvc-4mm-friction-hinge-packers-window-stay-spacer-convert-13-to-17mm-stack-pack/

• Slotted fixing holes in base channel and sash bar with final fixing hole in each component to provide maximum sash/frame adjustment
• Extra strong glass-filled nylon friction slide, end-caps symmetrical
• Suitable for PVC-u, Aluminium and Timber
• Max sash height – 450mm
• Max sash weight – 22kg
• Max Opening Angle – 60°
